Two-handed remote controller, one tap to operate on App
全自主作业
一车多用
割草、植保、运输......
适应全地形
强悍越野性能
精准行驶
RTK 厘米级定位
安全可靠
4D 成像雷达 + 多目视觉
易学好用
双手遥控、APP 一键操作
我，擅长跋山涉水
可靠结构，卓越动力，强悍越野性能，
适应各种作业场景。

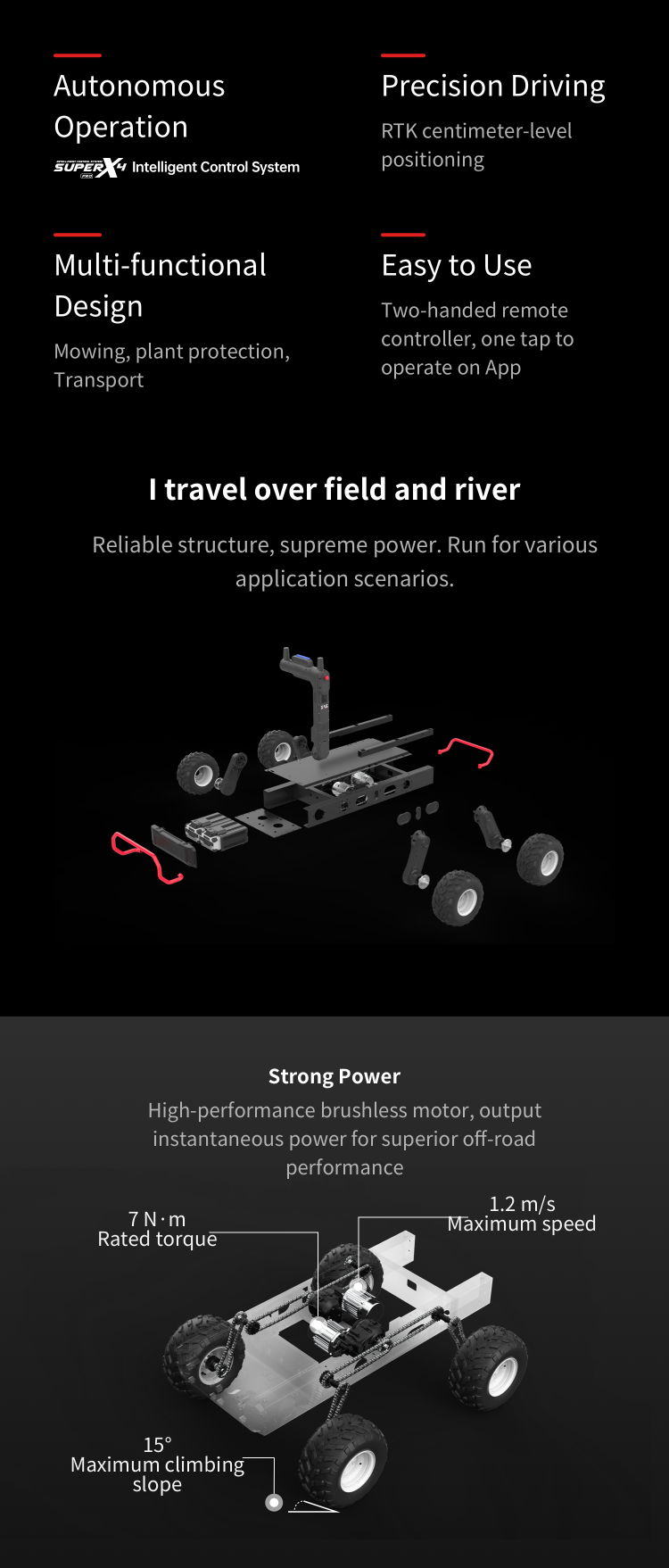

I travel over field and river
Reliable structure, supreme power. Run for various application scenarios.
Strong Power
High-performance brushless motor,
output instantaneous power for superior off-road performance
7 N·m
Rated torque
1.2 m/s
Maximum speed
15°
Maximum climbing slope
适应多种地形
轮组便捷切换，满足不同作业需求。
58° / 60°
接近角 / 离去角
1 米
最小转弯直径
Strong Power
High-performance brushless motor, output instantaneous
power for superior off-road performance
7 N·m
Rated torque
1.2 m/s
Maximum speed
15°
Maximum climbing slope

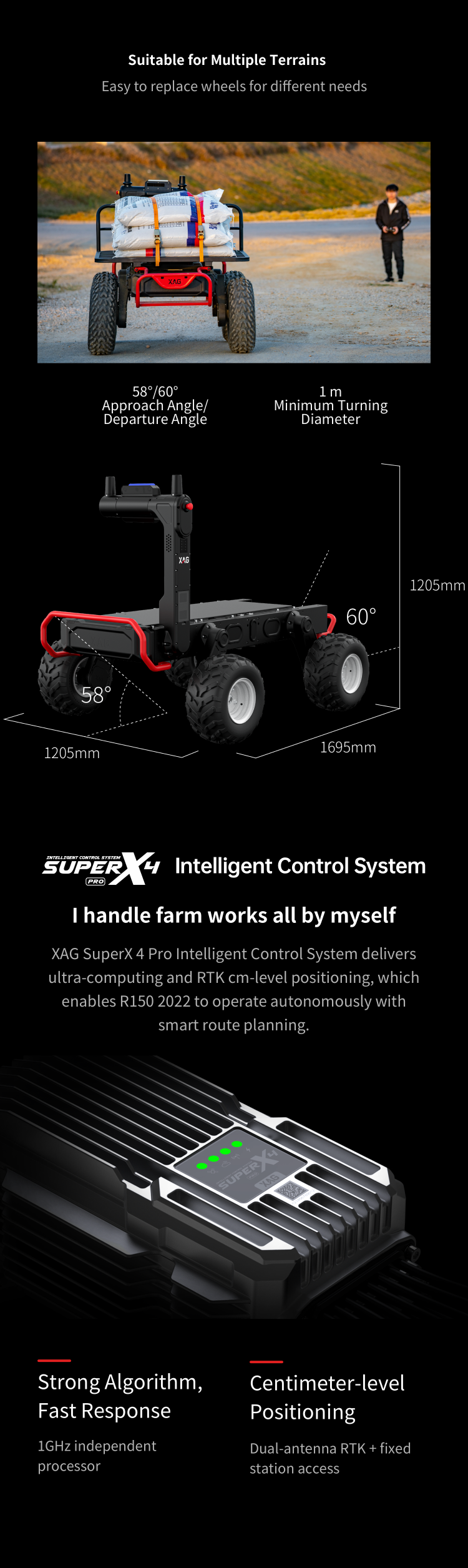

Suitable for Multiple Terrains
Easy to replace wheels for different needs
58° / 60°
Approach angle/ Departure angle
1 m
Minimum turning diameter
I handle farm works all by myself
XAG SuperX 4 Pro Intelligent Control System delivers ultra-computing and RTK cm-level positioning,
which enables R150 2022 to operate autonomously with smart route planning.
I handle farm works all by myself
XAG SuperX 4 Pro Intelligent Control System delivers ultra- computing and RTK cm-level positioning,
which enables R150 2022 to operate autonomously with smart route planning.
Strong Algorithm, Fast Response
1 GHz independent processor
Centimeter-level Positioning
Dual-antenna RTK + fixed station access
Intelligent Perception
Stereo vision
I know how to run safely
Stereo vision sees front obstacles accuratly and automatically identify driving routes.
Headlamp
Facilitate night operations
Stereo vision
Automatically identify routes and provide precision operation
Strong Algorithm, Fast Response
1 GHz independent processor
Centimeter-level Positioning
Dual-antenna RTK + fixed station access
Intelligent Perception
Stereo vision
I know how to run safely
4D 成像雷达，准确感知前方障碍物，智能停障； 多目视觉辅助，自动识别行驶路线。
Stereo vision sees front obstacles accuratly and automatically identify driving
routes.
Work with me and relax
两种交互体验，四种作业模式，匹配不同应用
场景，选择最适合你的操控方式。
极飞农服 APP 3.0
APP 一键操作 智能规划路线
双链路设计 弱网环境通讯稳定
精准执行 多种作业需求
兼容 Android 和 iOS 系统
遥感设计，多样化按 键，操控得心应手
双卡双待 可自动切换信号
可选配 ARC3 - RTK 模块
大容量 长续航 续航 时间一般 5-6 小时

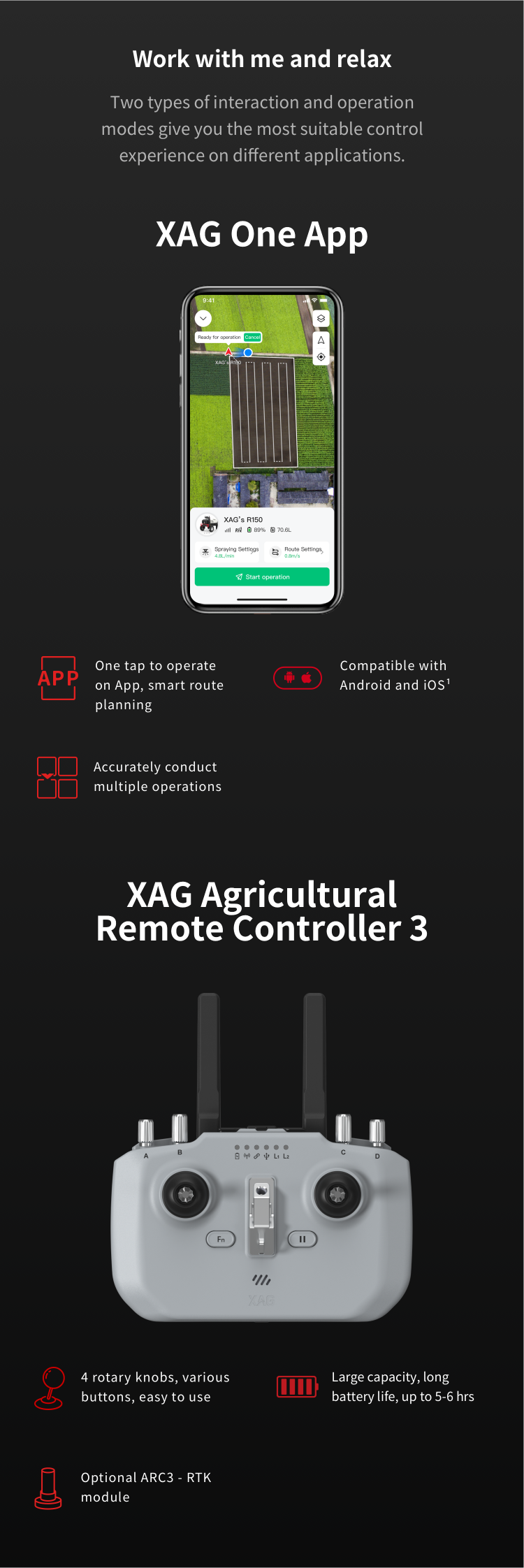

Work with me and relax
Two types of interaction and four operation modes give you the
most suitable control experience on different applications.
我活力十足，精力充沛
Route ModeMultiple routes, execute autonomously
Remote Control ModeQuick start, easy to use
I am energetic and full of power

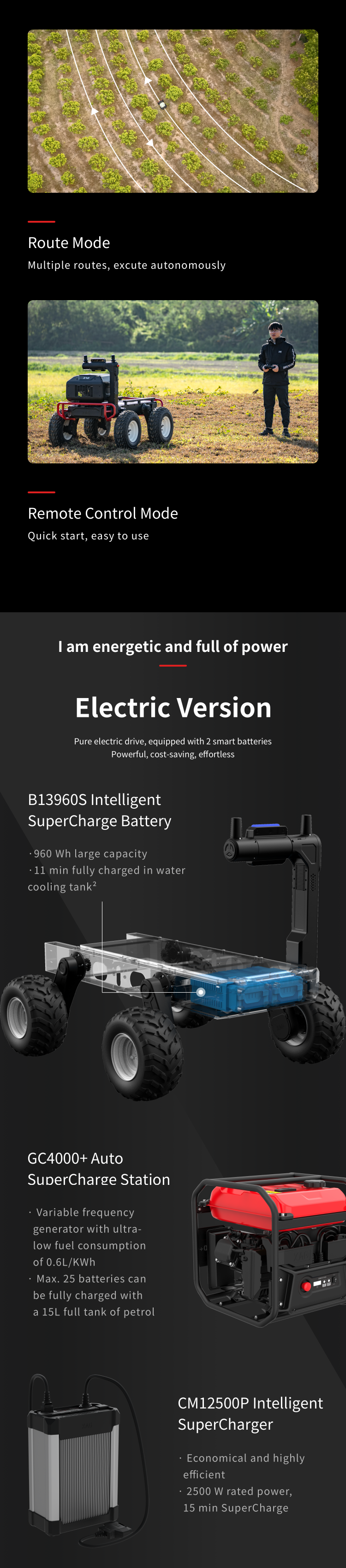

Electric Version
Electric Version
Pure electric drive, equipped with 2 smart batteries
Powerful, cost-saving, effortless
B13960S Intelligent SuperCharge Battery
· 962 Wh large capacity
· 11 min fully charged in water cooling tank¹
GC4000+ Auto SuperCharge Station
· Variable frequency generator with
ultra-low fuel consumption of 0.6 L/KWh
· Max. 25 batteries can be fully charged
with a 15 L full tank of petrol
CM12500P Intelligent SuperCharger
· Economical and highly efficient
· 2500 W rated power,
15 min SuperCharge
Electric Version
Pure electric drive,equipped with 2 smart batteries
Powerful,cost-saving,effortless

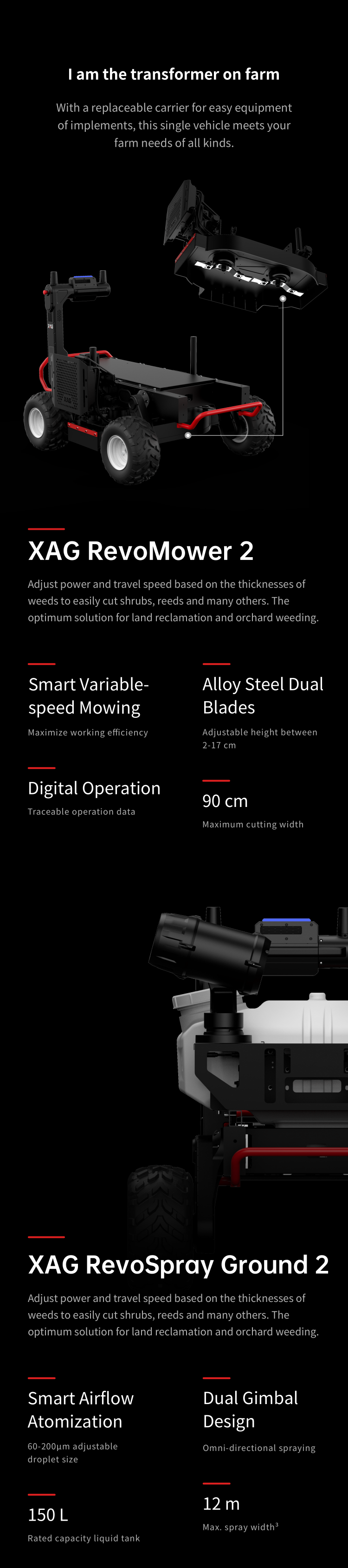

With a replaceable carrier for easy equipment of implements, this single vehicle meets your farm needs
of
all kinds.
360° atomization spray with adjusted droplet
size works perfectly for forestry,
orchard, disinfection and more.
Smart Airflow Atomization
60-200 μm adjustable droplet size
Dual Gimbal Design
Omni-directional spraying
150 L
Rated capacity liquid tank
12 m
Max. Spray Width3
Adjust power and travel speed based on the
thicknesses of weeds to easily cut
shrubs, reeds and many others. The optimum solution for land reclamation and
orchard weeding.
Smart Variable- speed Mowing
Maximize working efficiency
Alloy Steel Dual Blades
Adjustable height between 2-17 cm
Digital Operation
Traceable operation data
90 cm
Maximum cutting width

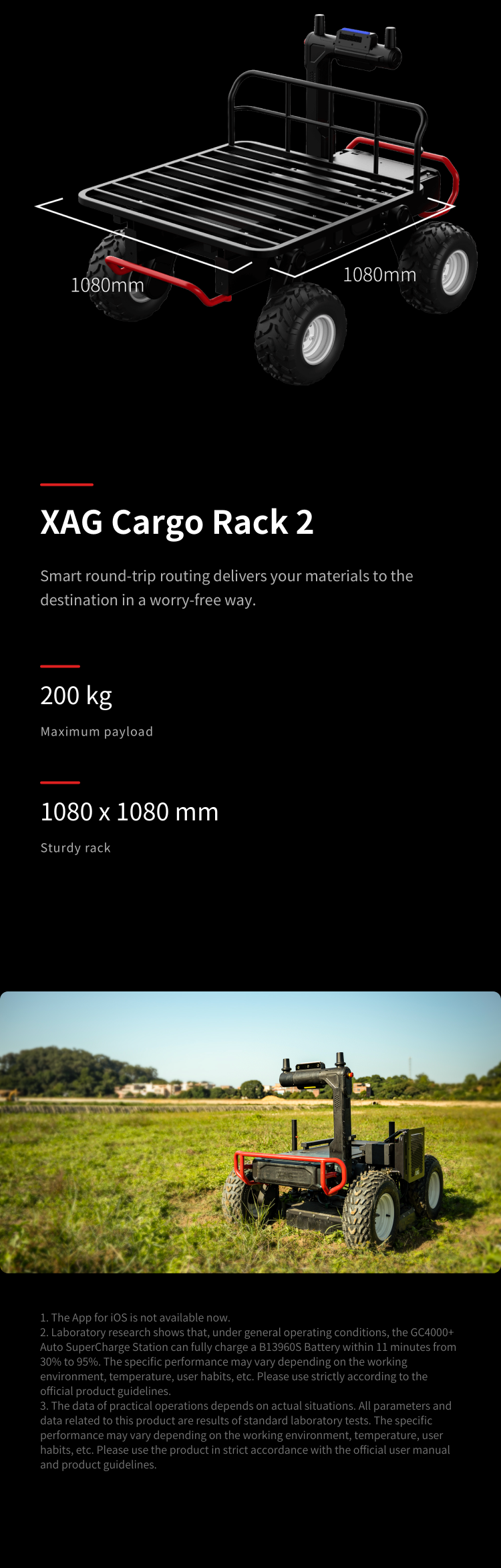

Smart round-trip routing delivers your
materials to the destination in a worry-free way.
1. Laboratory research shows that, under general operating conditions, the GC4000+ Auto SuperCharge Station
can fully charge a B13960S Battery within 11 minutes from 30% to 95%. The specific performance may vary
depending on the working environment, temperature, user habits, etc. Please use strictly according to the
official product guidelines. 2. The App for iOS is not available now. 3. The data of practical operations depends on actual situations. All parameters and data related to this
product are results of standard laboratory tests. The specific performance may vary depending on the working
environment, temperature, user habits, etc. Please use the product in strict accordance with the official user
manual and product guidelines.
1. Laboratory research shows that, under general operating conditions, the GC4000+ Auto SuperCharge Station
can fully charge a B13960S Battery within 11 minutes from 30% to 95%. The specific performance may vary
depending on the working environment, temperature, user habits, etc. Please use strictly according to the
official product guidelines.
2. The data of practical operations depends on actual situations. All parameters and data related to this
product are results of standard laboratory tests. The specific performance may vary depending on the working
environment, temperature, user habits, etc. Please use the product in strict accordance with the official user
manual and product guidelines.
